alpha Value Line
LPB+

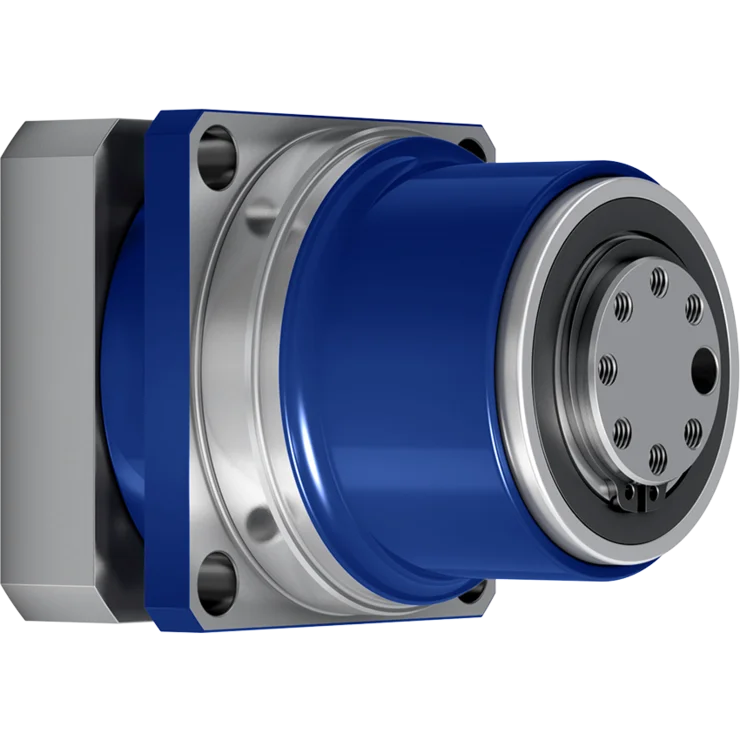

Planetary gearbox
The low backlash LPB+ planetary gearbox combines high manufacturing quality with cost-effective precision. Thanks to its output flange or optional belt pulley, it is ideal for compact belt-driven applications with limited installation space.
3 – 100
Ratio
37 – 305 Nm
Max. torque
≤ 8 arcmin
Backlash
Universally applicable
The planetary gearboxes of the alpha Value Line are suitable for universal application and offer the best, most economical solution for virtually all requirements – on each axis and for all industries
High cost-effectiveness
Economical to purchase, efficient to operate, and maintenance-free throughout their entire service life – alpha Value Line gearboxes offer maximum cost efficiency
Compact design
The LPB+ planetary gearbox features a highly compact design – and, thanks to its optional belt pulley, is ideal for integration into linear modules
Technical details
| Document name | Document type | Language | Downloads |
|---|---|---|---|
 LPB+ Brochure The compact solution for linear drives | Brochure /Catalog | American English | |
 alpha Value Line Technical documents LP+ / LPB+ | Operating manual | Neutral |
Contact us
Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.
The compact solution for linear drives
Further information

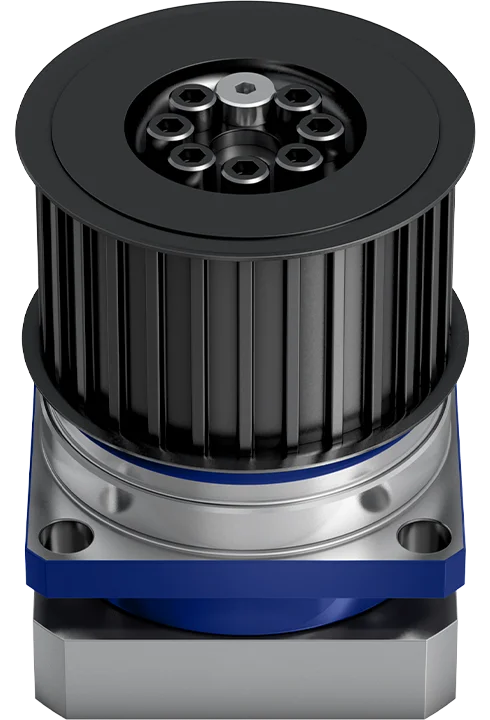

The LPB+ with toothed belt pulley. Optimized for all types of belt applications and space-saving thanks to its integrated pulley solution. Without the belt pulley, it is suitable for use as a compact add-on or wheel hub drive.
The PLPB+ toothed belt pulley is not included in the scope of delivery and must be ordered separately along with the gearbox.
